C Frame Shaded Pole Motor YZF61 , Single Phase Refrigerator Fan Motor

Product Categories
Changzhou Trustec Company Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

C Frame Shaded Pole Motor YZF61 , Single Phase Refrigerator Fan Motor

Brand Name : trusTec

Model Number : YZF61

Certification : CE

Place of Origin : China

MOQ : 200pcs

Price : Negotiable (EXW/FOB/CNF/CIF)

Payment Terms : T/T, L/C

Supply Ability : 100,000 pcs per month

Delivery Time : 15-20 work days after order confirmation.

Packaging Details : Standard export carton packing, foam board inside for protection.

Type : Shaded Pole Fan Motor

Voltage : 220-240 V

Frequency : 50Hz

Input Power : 15 W

Speed : 2400 RPM

Torque : 80g.cm

ODM Solutions : ODM Solutions: Customized AC and EC motors

Contact Now



C Frame Shaded Pole Motor YZF61, single phase refrigerator fan motor



 C Frame Shaded Pole Motor  48, 55, 61, 71
 Q Shaded Pole Motor  5-13-18, 7-20-26, 10-20-18, 16-25-26, 25-40-26
 ECM Motor  ECM7108, ECM7112, ECM7120
 Voltage & Frequency  115/230V, 50/60Hz; 12/24/48VDC (Customizable)
 Speed Range  1300~2850RPM (Customizable)
 Power  5~60W (Customizable)
 Insulation Class  "B" or "F"
 Motor Protection  Thermal Protection or Electronic Protection
 IP Class  IP44 or IP66
 Bearing  Ball Bearing
 Direction of Rotation  CCW (Standard), CW (Optional)
 Operating Temperature / Humidity  - 40 oC to + 55 oC / 5% to 95% RH



Description



The series motor is safe and reliable, low noise, characteristics hard, good starting and long life etc.

This series motor is widely used in humidifiers, heater fan, electdc toaster, fireplace and other household appliances.

The series motor can be designed into four insulation class according to requirement: E,B,F,H.

Motor rotation and size "L1, L2" can be produced to requirement.

Parameters:



Model

Size A

/mm

Voltage

/V

Frequency

/Hz

 Load Parameter

Input Current

/A

Input Power

/W

Speed

/RPM

Torque

/g.cm
YZF61-10/1 10.5 220-240 50 0.06 15 2400 80
YZF61-10/2 10.5 110-120 60 0.1 16 2600 80
YZF61-16/1 16.5 220-240 50 0.25 26 2450 140
YZF61-16/2 16.5 110-120 60 0.28 27 2600 140
YZF61-20/1 20.5 220-240 50 0.30 30 2450 180
YZF61-20/2 20.5 110-120 60 0.38 32 2700 180
YZF61-25/1 25.5 220-240 50 0.33 35 2400 220
YZF61-25/2 25.5 110-120 60 0.41 42 2600 220
YZF61-30/1 30.5 220-240 50 0.45 45 2400 280
YZF61-30/2 30.5 110-120 60 0.52 46 2580 280
YZF61-35/1 35.5 220-240 50 0.65 53 2800 350
YZF61-35/2 35.5 110-120 60 0.90 58 2400 350
YZF61-40/1 40 220-240 50 0.83 62 2500 400
YZF61-40/2 40 110-120 60 1.20 75 2800 400

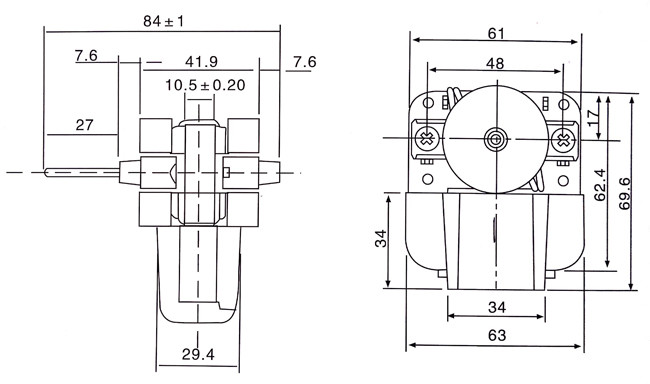

Drawing

C Frame Shaded Pole Motor YZF61 , Single Phase Refrigerator Fan Motor
